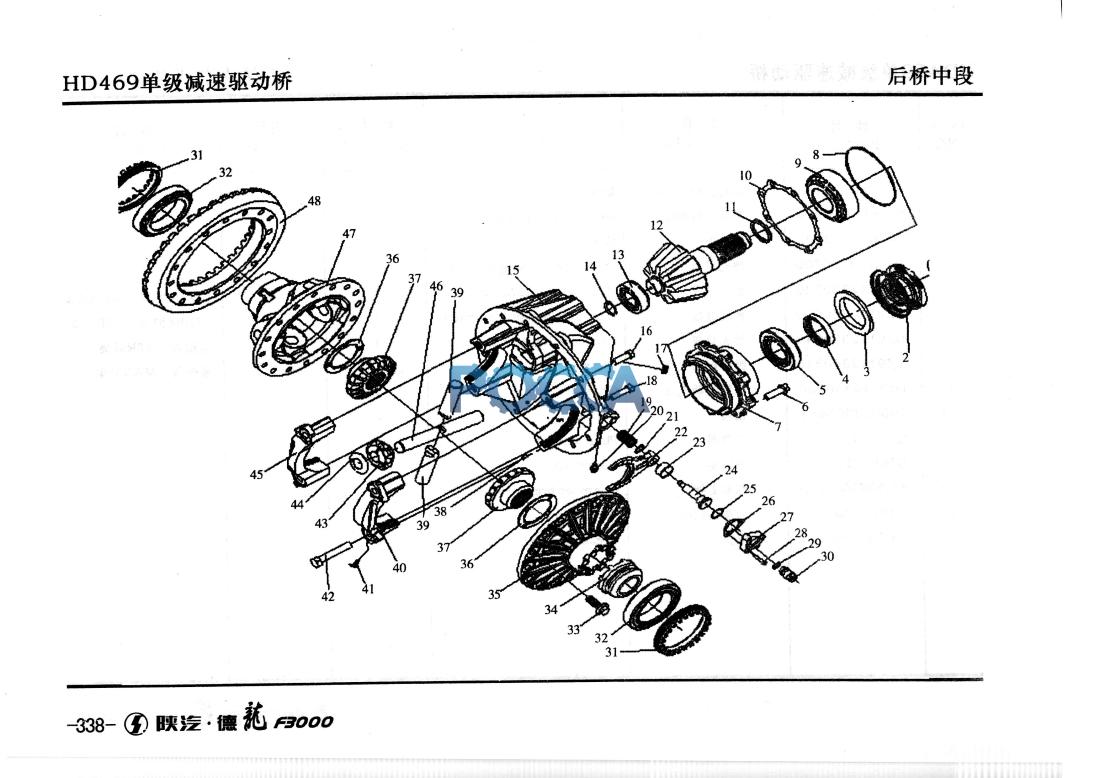

главная пара,корпус редуктора SHAANXI (Шанкси) SHACMAN F3000 24 Гр. Задний и средний мосты
главная пара корпус редуктора (hd485 корпус моста в сборе. энергоаккумулятор.
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.90685.0303 | 1 | 凸缘螺母 | Flange nut | ®180端面齿 | |||
| 2 | 81.39115.5104 | 1 | 凸缘总成 | Flange assembly | 用于 1=2.714 | |||
| HD469-2402073 | 1 | 被动锥齿轮 | Crown wheel | 装单油封 | ||||
| 3 | DZ9112320275 | 1 | 油封座 | Seal seat | 31313J2 | |||
| 4 | DZ9112320183 | 1 | 轴密封圈 | Axle seal ring | 用于 1=5.286 | |||
| 5 | 06.32499.0022 | 1 | 圆锥滚子轴承 | Tapered roller bearing | 带瓦盖 | |||
| 6 | Q1811645TF2 | 8 | 六角头螺栓 | Hex bolt | 用于1 = 2.7143.364 | |||
| 7 | HD469-2402018 | 1 | 轴承座 | Bearing seat | 用于1=2.7143.364 | |||
| 8 | HD469-2402019 | 1 | 〇形圈 | O-ring | 用于 1=5.286 | |||
| 9 | 06.32499.0192 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 10 | HD469-2402021 | 按需 | 调整垫片 | Adjusting washer | ||||
| 11 | 81.90770.0100 | 按需 | 调整垫片 | Adjusting washer | ||||
| 12 | HD469-2402058 | 1 | 主动锥齿轮 | Pinion gear | ||||
| 13 | HD469-2402012 | 1 | 圆柱滚子轴承 | Cylinder roller bearing | ||||
| 14 | HD469-2402055 | 1 | 止推环 | Stop ring | ||||
| 15 | HD469-2402044 | 1 | 减速器壳总成 | Drive head case assy. | ||||
| 16 | Q1811650TF2 | 6 | 六角头螺栓 | Hex bolt | ||||
| 17 | DZ9003962021 | 1 | 内六角锥形螺塞 | Square head tapered plug | ||||
| 18 | Q1811660TF2 | 6 | 六角头螺栓 | Hex bolt | ||||
| 19 | HD469-2406011 | 1 | 弹簧 | Spring | ||||
| 20 | 81.35306.0034 | 1 | 直通接头 | Plug connection | ||||
| 21 | HD469-2402014 | 1 | 垫圈 | Washer | ||||
| 22 | 81.35614.0016 | 1 | 拨叉 | Shifting yoke | ||||
| 23 . | HD469-2406014 | 1 | 衬套 | Sleeve | ||||
| 24 | HD469-2406013 | 1 | 活塞杆 | Plunger | ||||
| 25 | HD469-2406015 | 1 | 〇形圈 | O-ring | ||||
| 26 | HD469-2406017 | 1 | 密封衬垫 | Seal gasket | ||||
| 27 | HD469-2406012 | 1 | 缸盖 | Cylinder cover | ||||
| 28 | Q218B0835 | 3 | 螺栓 | Bolt | ||||
| 29 | Q72318 | 1 | 密封垫圈 | Seal washer | ||||
| 30 | 81.25503.0244 | 1 | 差速锁压力开关 | Diff. lock sensor | ||||
| 31 | 81.35125.0024 | 2 | 调整螺母 | Adjusting nut | ||||
| 32 | 06.32480.1800 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 33 | HD469-2402011 | 16 | 螺栓 | Bolt | ||||
| 34 | HD469-2406018 | 1 | 滑动啮合套 | Slidable sleeve | ||||
| 35 | HD469-2403013 | 1 | 差速器壳（左） | Differential case (left) | ||||
| 36 | HD469-2403017 | 2 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 37 | HD469-2403015 | 2 | 半轴齿轮 | Axle shaft gear | ||||
| 38 | Q5220816 | 4 | 圆柱销 | Cylinder pin | ||||
| 39 | HD469-2403019 | 2 | 十字轴 | Spider | ||||
| 40 | HD469-2402042 | 1 | 瓦盖（左） | Bearing cap (left) | ||||
| 41 | Q5006332 | 2 | 开口销 | Cotter pin | ||||
| 42 | Q151C20110TF2 | 4 | 六角头螺栓 | Hex bolt | ||||
| 43 | HD469-2403016 | 4 | 行星齿轮 | Planet gear | ||||
| 44 | HD469-2403018 | 4 | 行星齿轮垫片 | Planet gear washer | ||||
| 45 | HD469-2402043 | 1 | 瓦盖（右） | Bearing cap (right) | ||||
| 46 | HD469-2403021 | 1 | 十字轴 | Spider | ||||
| 47 | HD469-2403014 | 1 | 差速器壳（右） | Differential case (right) | ||||
| 48 | HD469-2402059 | 1 | 被动锥齿轮 | Crown wheel |
