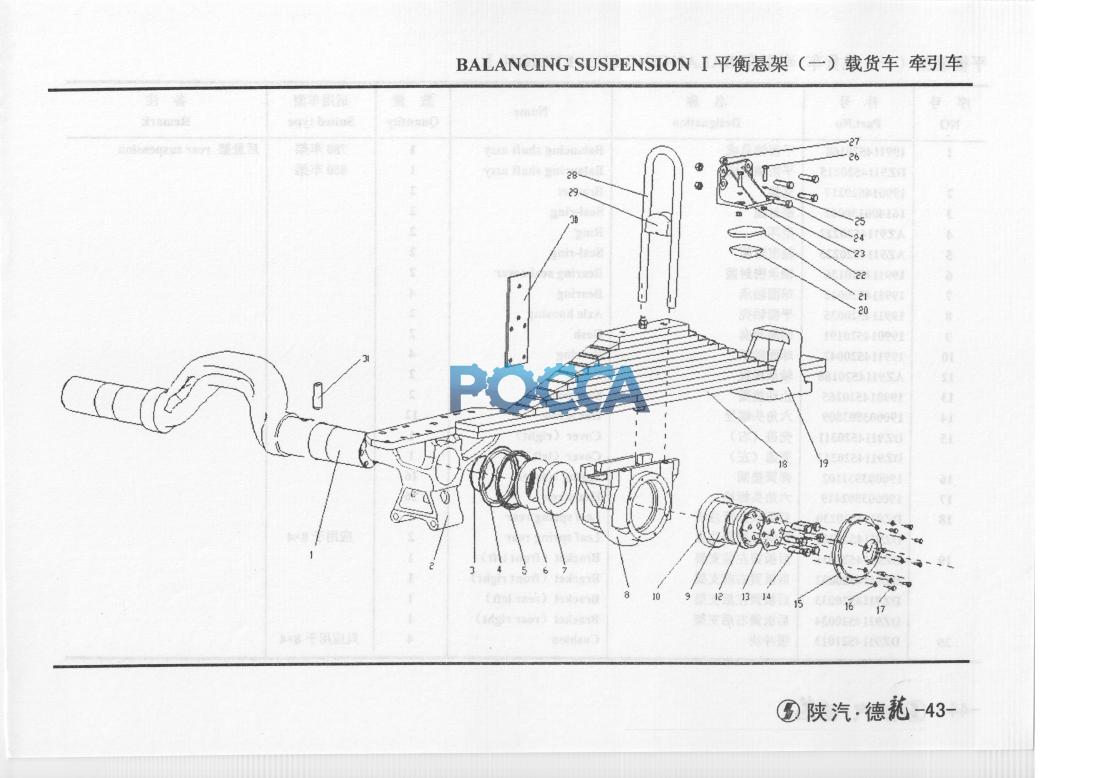

Балансирная подвеска SHAANXI (Шанкси) SHACMAN F2000 29 Гр. Подвеска (амортизатор.)
8*4 Передняя рессора. Балансирная подвеска 2
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 199114520168 | 1 | Balancing shaft assy | 平衡轴总成 | 780车架 | 后悬架 rear suspension | ||
| 1 | DZ9114520215 | 1 | Balancing shaft assy | 平衡轴总成 | 850车架 | |||
| 2 | 199014520217 | 2 | Bracket | 支架 | ||||
| 3 | 161400130062 | 2 | Seal-ring | 密封圈 | ||||
| 4 | AZ9114520222 | 2 | Ring" | 型环 | ||||
| 5 | AZ9114520223 | 2 | Seal-ring | 轴密封圈 | ||||
| 6 | 199114520136 | 2 | Bearing seal cover | 轴承密封盖 | ||||
| 7 | 199114520042 | 4 | Bearing | 球面轴承 | ||||
| 8 | 199114520035 | 2 | Axle housing | 平衡轴壳 | ||||
| 9 | 199014520191 | 2 | Bush | 间隔衬套 | ||||
| 10 | 199114520042 | 4 | Bearing | 球面轴承 | ||||
| 12 | AZ9114520188 | 2 | Palte | 轴承压板 | ||||
| 13 | 199014520265 | 2 | Stop washer | 止动垫圈 | ||||
| 14 | 190003803809 | 12 | Hex screw | 六角头螺栓 | ||||
| 15 | DZ9114520311 | 1 | Cover (right) | 壳盖（右） | ||||
| 15 | DZ9114520312 | 1 | Cover (left) | 壳盖（左） | ||||
| 16 | 190003931102 | 16 | Spring washer | 弹簧垫圈 | ||||
| 17 | 190003802419 | 16 | Hex screw | 六角头螺栓 | ||||
| 18 | DZ9114520230 | 2 | Leaf spring rear | 后钢板弹簧总成 | ||||
| DZ9114520220 | 2 | Leaf spring rear | 后钢板弹簧总成 | 应用于8x4 | ||||
| 19 | DZ9114520031 | 1 | Bracket (front left) | 后板寶左則支架 | ||||
| DZ9114520032 | 1 | Bracket (front right) | 后板簧右前支架 | |||||
| DZ9114520033 | 1 | Bracket (rear left) | 后板簧左后支架 | |||||
| DZ9114520034 | 1 | Bracket (rear right) | 后板寶右后支架 | |||||
| 20 | DZ9114521013 | 4 | Cushion | 缓冲块 | 只应用于8x4 | |||
| 21 | DZ9114521014 | 4 | Plate | 板 . | 只应用于8x4 | |||
| 22 | DZ9114521011 | 4 | Brackt of cushion | 缓冲块支架 | 只应用于8x4 | |||
| DZ9114521015 | 4 | Brackt of cushion | 缓冲块支架 | 只应用于8x4 | ||||
| 23 | Q340B10 | 8 | Hex nut | 1型六角螺母 | 只应用于8x4 | |||
| 24 | Q151B1455TF2 | 16 | Hex screw | 六角头螺栓 | 只应用于8x4 | |||
| 25 | Q40310 | 8 | Spring washer | 弹簧垫圈 | 只应用于8x4 | |||
| 26 | Q150B1040 | 8 | Hex screw | 六角头螺栓 | 只应用于8x4 | |||
| 27 | 190003888458 | 16 | Locking nut | 自锁螺母 | 只应用于8x4 | |||
| 28 | 199014520124 | 4 | Spring clip | 后簧骑马螺栓 | ||||
| 29 | 199000520021 | 4 | Bolt set | 骑马螺栓座 | ||||
| 30 | 199114520147 | 4 | Plate | 导向板 | ||||
| 199014520224 | 按需 | Plate | 平衡板 | |||||
| 199014520225 | 按需 | Plate | 平衡板 | |||||
| 199114520204 | 按需 | Plate | 平衡板 | |||||
| 31 | 190003900007 | 2 | Pin | 销 |
