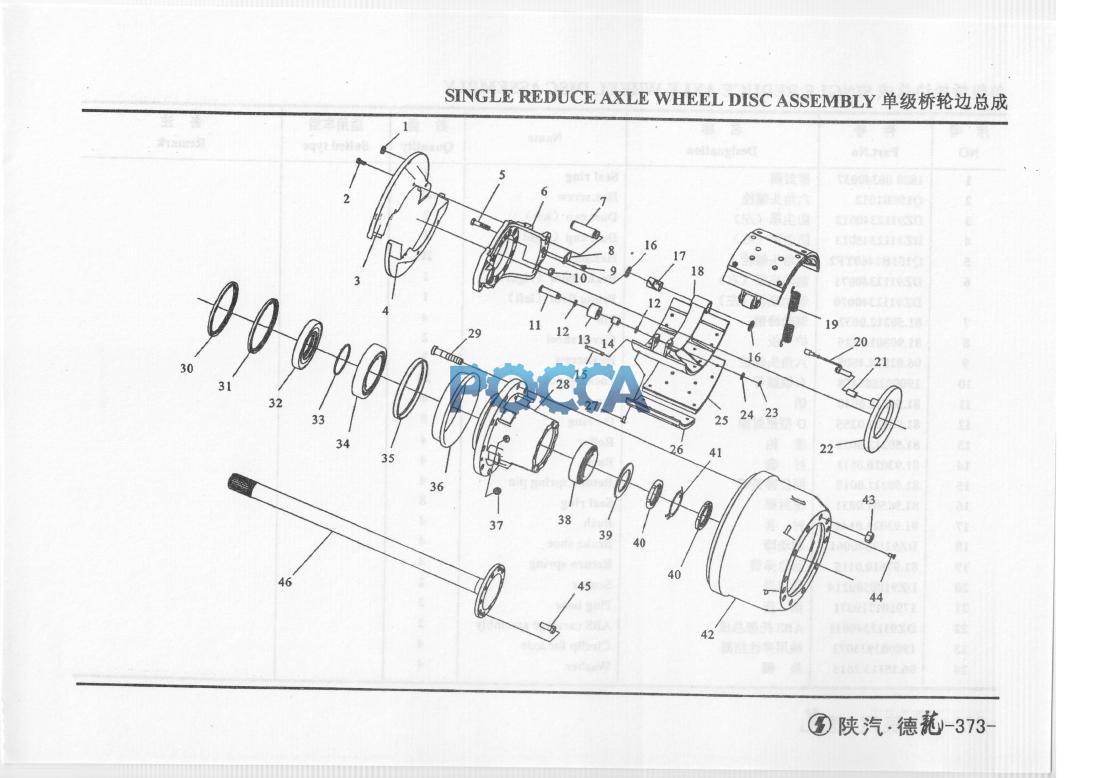

Тормоз задний с ABS, SHAANXI (Шанкси) SHACMAN F2000 35 Гр. Тормоза
Схема тормозной системы для тягачей 6х4 Тормоз передний
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 1880 00340037 | 4 | 密封圈 | Seal ring | ||||
| 2 | Q150B1012 | 12 | 六角头螺栓 | Hex.screw | ||||
| 3 | DZ9112340012 | 2 | 防尘罩（左） | Dust cap (left) | ||||
| 4 | DZ9112340013 | 2 | 防尘罩（右） | Dust cap (right) | ||||
| 5 | Q151B1460TF2 | 20 | 六角头螺栓 | Hex.screw | ||||
| 6 | DZ9112340071 | 1 | 制动底板（右） | Brake floor (right) | ||||
| 6 | DZ9112340070 | 1 | 制动底板（左） | Brake floor (left) | ||||
| 7 | 81.50212.0032 | 4 | 制动蹄销 | Pin | ||||
| 8 | 81.90801.0225 | 2 | 护板 | Cover sheet | ||||
| 9 | 06.02828.4505 | 2 | 六角头螺栓 | He 文.screw | ||||
| 10 | 190003888458 | 20 | 自锁螺母 | Locking nut | ||||
| 11 | 81.50211.0030 | 4 | 销 | Pin | ||||
| 12 | 81.96502.0255 | 8 | 〇型密封圈 | O - ring | ||||
| 13 | 81.50213.0022 | 4 | 滚轮 | Roller | ||||
| 14 | 81.93020.0811 | 4 | 衬套 | Bush | ||||
| 15 | 81.50211.0018 | 4 | 回位弹簧销 | Return spring pin | ||||
| 16 | 81.96501.0831 | 8 | 密封圈 | Seal ring | ||||
| 17 | 81.93021.0141 | 4 | 衬套 | Bush | ||||
| 18 | DZ9112340061 | 4 | 制动蹄 | Brake shoe | ||||
| 19 | 81.97610.0115 | 4 | 回位弹簧 | Return spring | ||||
| 20 | DZ9100580214 | 2 | 传感器 | Sensor | ||||
| 21 | 179101710071 | 2 | 插座 | Plug base | ||||
| 22 | DZ9112340011 | 2 | ABS托架总成 | ABS carriage assembly | ||||
| 23 | 190003933072 | 4 | 轴用弹性挡圈 | Circlip for axle | ||||
| 24 | 06.15113.2615 | 4 | 垫圈 | Washer | ||||
| 25 | DZ9112340063 | 4 | 下摩擦片 | Lower frictioii plate | ||||
| 26 | DZ9112340062 | 4 | 上摩擦片 | Upon friction plate | ||||
| 27 | 81.92201.0109 | 按需 | 铆钉 | Reviet | ||||
| 27 | 81.92201.0108 | 按需 | 铆钉 | Reviet | ||||
| 28 | DZ9112340009 | 2 | 轮毂 | Wheel hub | ||||
| 29 | DZ9112340123 | 20 | 车轮螺栓 | Wheel nut | ||||
| 30 | DZ9112340052 | 2 | 油封 | Oil seal ring | ||||
| 31 | DZ9112340153 | 2 | 油封 | Oil seal ring | ||||
| 32 | DZ9112340017 | 2 | 隔圈 | Space ring | ||||
| 33 | 199012320027 | 2 | 密封圈 | Seal ring | ||||
| 34 | 30222 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 35 | DZ9112340008 | 2 | 齿圈 | Gear ring | ||||
| 36 | DZ9112340010 | 2 | 挡油盘 | Oil baffle disc | ||||
| 37 | DZ9003962021 | 2 | ’内六角锥形螺塞 | Cone plug screw | ||||
| 38 | 33118 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 39 | DZ9112340016 | 2 | 止推垫环 | Thrust ring | ||||
| 40 | DZ9112340014 | 4 | 锁紧螺母 | Nut | ||||
| 41 | DZ9112340018 | 2 | 止退垫圈 | Thrust washer | ||||
| 42 | DZ9S12340006 | 2 | 制动*鼓 | Brake drum | ||||
| 43 | 190003884160 | 20 | 车轮螺母 | Wheel nut | ||||
| 44 | Q2541020 | 4 | 十字槽沉头螺钉 | Slit bolt | ||||
| 45 | Q151B1645TF2 | 20 | 六角头螺栓 | Hex.screw | ||||
| 46 | DZ9112340043 | 2 | 半轴 | Axle shaft |
