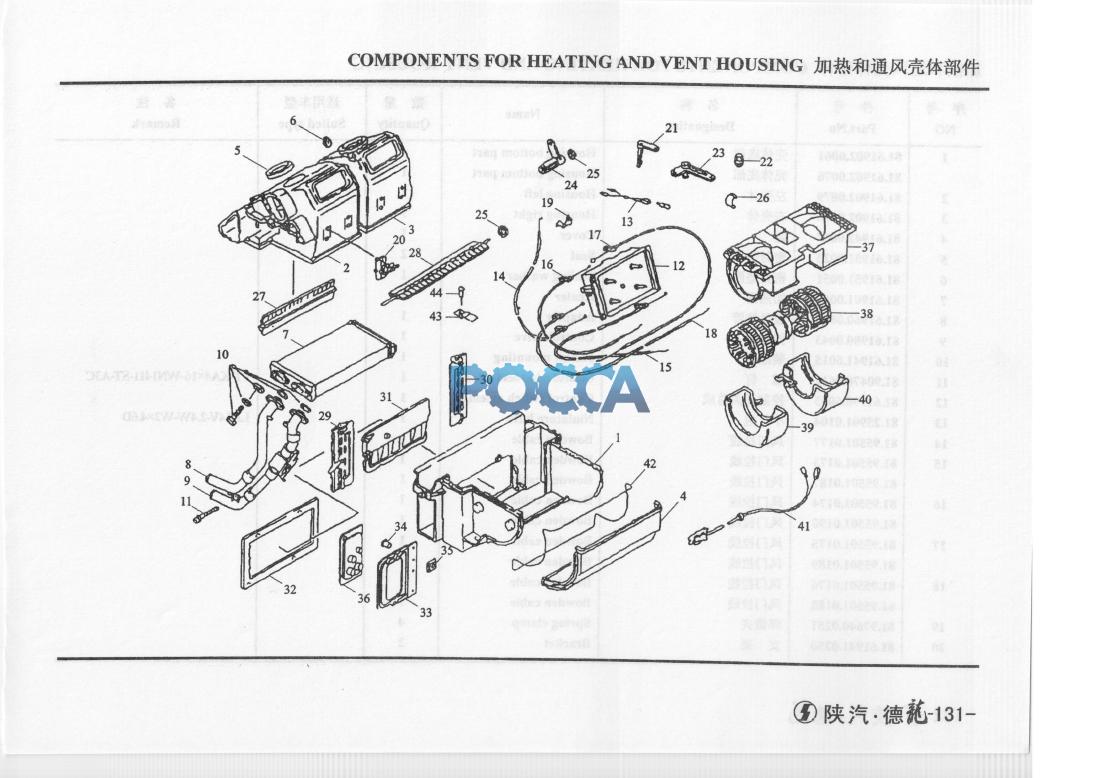

F2000 Система кондиционирования и отопления SHAANXI (Шанкси) SHACMAN F2000 50 Гр. Кабина
Боковые панели кабины
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.61902.0061 | 1 | Housing bottom part | 壳体底部 | ||||
| 1 | 81.61902.0076 | 1 | Housing bottom part | 壳体底部 | ||||
| 2 | 81.61902.0079 | 1 | Housing left | 左壳体 | ||||
| 3 | 81.61902.0078 | 1 | Housing right | 右壳体 | ||||
| 4 | 81.61942.0067 | 1 | Cover | 盖 | ||||
| 5 | 81.61951.0023 | 2 | Seal | 密封件 | ||||
| 6 | 81.61951.0051 | 1 | Sealing washer | 密封垫圈 | ||||
| 7 | 81.61901.0067 | 1 | Heater | 加热器 | ||||
| 8 | 81.61960.0616 | 1 | Adapter | 暖风接管 | ||||
| 9 | 81.61980.0043 | 1 | Control valve | 控制阀 | ||||
| 10 | 81.61941.6015 | 1 | Par kit mounting | 装配件 | ||||
| 11 | 81.90470.0611 | 1 | Grooved raised head colhscrew | 螺钉 | IT,-KA4xl6-\VN1411-ST-A3C | |||
| 12 | 81.61990.6053 | 1 | Control switch assembly | 控制开关总成 | ||||
| 13 | 81.25901.0104 | 1 | Niniature bulb | 小灯泡 | LD24V-2.4W-W2x4.6D | |||
| 14 | 81.95501.0177 | 1 | Bowden cable | 风门拉线 | ||||
| 15 | 81.95501.0173 | 1 | Bowden cable | 风门拉线 | ||||
| 15 | 81.95501.0187 | 1 | Bowden cable | 风门拉线 | ||||
| 16 | 81.95501.0174 | 1 | Bowden cable | 风门拉线 | ||||
| 16 | 81.95501.0190 | 1 | Bowden cable | 风门拉线 | ||||
| 17 | 81.95501.0175 | 1 | Bowden cable | 风门拉线 | ||||
| 17 | 81.95501.0189 | 1 | Bowden cable | 风门拉线 | ||||
| 18 | 81.95501.0176 | 1 | Bowden cable | 风门拉线 | ||||
| 18 | 81.95501.0188 | 1 | Bowden cable | 风门拉线 | ||||
| 19 | 81.97640.0251 | 4 | Spring clamp | 弹簧夹 | ||||
| 20 | 81.61941.0250 | 2 | Bracket | 支架 | ||||
| 21 | 81.61972.0026 | 2 | Lever | 拉杆 | ||||
| 22 | 81.61990.0034 | 9 | Clip | 卡箍 | ||||
| 23 | 81.61990.0066 | 1 | Lever | 拉杆 | ||||
| 24 | 81.61990.0067 | 1 | Lever | 拉杆 | ||||
| 25 | 81.90820.0404 | 2 | Lock washer | 锁紧垫圈 | ||||
| 26 | 81.97640.0274 | 31 | Retaining clip | 固定夹 | ||||
| 27 | 81.61990.0081 | 1 | Defroster flap | 除霜板 | ||||
| 28 | 81,61990.0083 | 1 | Flap | 除箱板 | ||||
| 29 | 81.61990.0079 | 1 | Flap | 左挡板 | ||||
| 30 | 81.61990-0080 | 1 | Flap right | 右除霜板 | ||||
| 31 | 81.61990.0082 | 1 | Fresh air flap | 换气叶片 | ||||
| 32 | 81.61951.0021 | 1 | Sealing frame | 密封圈 | ||||
| 33 | 81.61942,0047 | 1 | Flange | 法兰 | ||||
| 34 | 81.92201.0098 | 4 | Blind rivet | 铆钉 | A4xl3-AiyST-BK/A3C | |||
| 35 | 81.90650.0018 | 6 | Nut | 螺母 | M8-16xl8-»-A2C | |||
| 36 | 81.61951.0022 | 1 | Gasket | 衬垫 | ||||
| 37 | 81.61930.0054 | 1 | Blower housing | 鼓风机壳体 | ||||
| 38 | 81.61930,0055 | 1 | Fan | 风扇 | ||||
| 39 | 81.61930-0052 | 1 | Half shell | 半壳 | ||||
| 40 | 81.61930.0053 | 1 | Half shell | 半壳 | ||||
| 41 | 81.25417.6818 | 1 | Loom | 线束 | ||||
| 42 | ||||||||
| 43 | 81.95510.0054 | 3 | Bracket | 支架 | ||||
| 44 | 16.24243.0221 | 3 | Blind rivet | 铆钉 | A4X13-ST-STA1PA1P | |||
| 81.61990.0063 | 1 | Mounting clamp |
