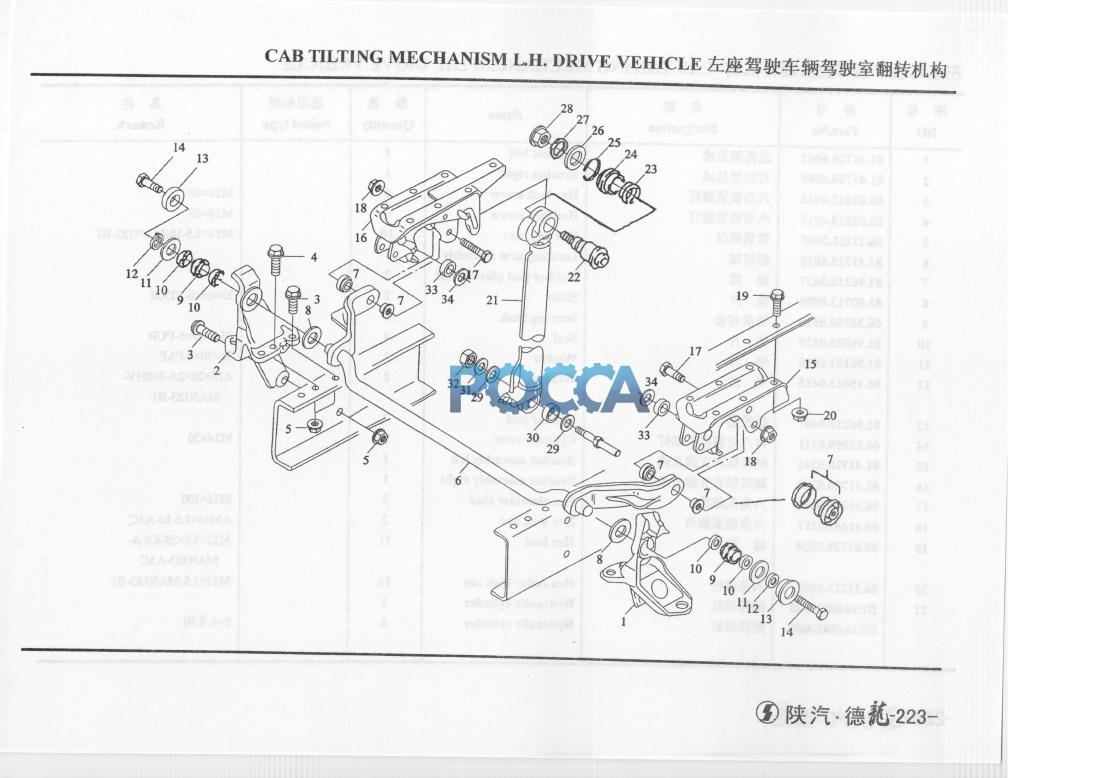

Механизм опрокидывания кабины SHAANXI (Шанкси) SHACMAN F2000 50 Гр. Кабина
Механизм замка кабины Мотор бачка стеклоомывателя
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.41720.6061 | 1 | Bracket left | 左托架总成 | ||||
| 2 | 81.41720.6060 | 1 | Bracket right | 右托架总成 | ||||
| 3 | 06.02813.4913 | 6 | Hex lock screw | 六角锁紧螺钉 | M14x40 | |||
| 4 | 06.02813.4915 | 4 | Hex lock screw | 六角锁紧螺钉 | M14x55 | |||
| 5 | 06.11251.2005 | 10 | Hex lock nut | 锁紧螺母 | M14xl.5-10-MAN18J-Bl | |||
| 6 | 81.41715.6010 | 1 | Locating arm assembly | 翻转轴 | ||||
| 7 | 81.96210.0437 | 2 | Rubber pad plastic/steel | 垫圈 | ||||
| 8 | 81.90713.0909 | 2 | Shim | 垫片 | 33x65x6-ST/GI | |||
| 9 | 06.36950.0510 | 2 | Bearing bush | 轴承衬套 | ||||
| 10 | 81.96503.0129 | 4 | Seal | 垫片 | 35^x47x5-PUR 32x7〇x4-PAF | |||
| 11 | 81.96101.0638 | 2 | Washer | 垫片 | ||||
| 12 | 06.15013.0415 | 2 | Washer | 垫片 | A15x28x2.5-200HV- MAN183-B1 | |||
| 13 | 81.96210.0407 | 2 | Rubber pad | 橡胶垫 | ||||
| 14 | 06.02099.0211 | 2 | Cylinder crew | 内六角圆柱头螺钌 | M14x3〇 | |||
| 15 | 81.41720.5341 | 1 | Bracket assembly left | 翻转轴左支撑总成 | ||||
| 16 | 81.41720.5340 | 1 | Bracket assembly right | 翻转轴右支撑总成 | ||||
| 17 | 06.01499.0150 | 2 | Hex shoulder stud | 六角头螺栓 | M16xl〇〇 | |||
| 18 | 06.11241.0117 | 2 | Hex lock nut | 六角锁紧螺母 | AM16X1.5-10-A3C | |||
| 19 | 06.01739.0054 | 11 | Hex bolt | 螺栓 | M12xl.5x35-8.8-A-MAN183-A3C | |||
| 20 | 06.11222.6507 | 14 | Hex collar lock nut | 六角螺栓 | M12xl.5-MAN183-Bl | |||
| 21 | DZ1640820020 | 1 | Hydraulic cylinder | 翻转油缸 | ||||
| 21 | DZ1640820060 | 1 | Hydraulic cylinder | 翻转油缸 | 8x4车用 | |||
| 22 | 81.91020.0734 | 1 | Pin | 销子 | 1.6x32.4x25-X12CRNI177K | |||
| 23 | 81.97602.0764 | 1 | Pressure spring | 压力弹簧 | ||||
| 24 | 81.41723.0064 | 1 | Washer | 垫片 | A23.2xl.25 | |||
| 25 | 81.90820.0500 | 1 | Circlip | 垫片 | 25x38x3-PE | |||
| 26 | 81.90713.0697 | 1 | Washer | 垫圈 | 162x36x4-ST2K32-A4C | |||
| 27 | 81.90713.0696 | 1 | Washer | 衬板 | AM16xl^-l〇-A3C | |||
| 28 | 06.11241.0117 | 1 | Hex lock nut | 螺母 | ||||
| 29 | 81.90712.0983 | 2 | Washer | 垫片 | 29^x4〇x7-PUR | |||
| 30 | 81.96502.0867 | 2 | Seal | 石棉垫圈 | 1&2x44x3-ST50-2-A3C | |||
| 31 | 81.90713.0695 | 1 | Washer | 垫片 | AM18X2-10-MAN183-B1 | |||
| 32 | 06,11241.0321 | 1 | Hex lock nut | 锁紧螺母 | 20x40x20 | |||
| 33 | 81.95801.0114 | 2 | Bush | 滚柱 | 2〇xl.20-ZNPHR5F | |||
| 34 | 06.29010.0117 | 2 | Circlip | -bk IS] S 圈 |
