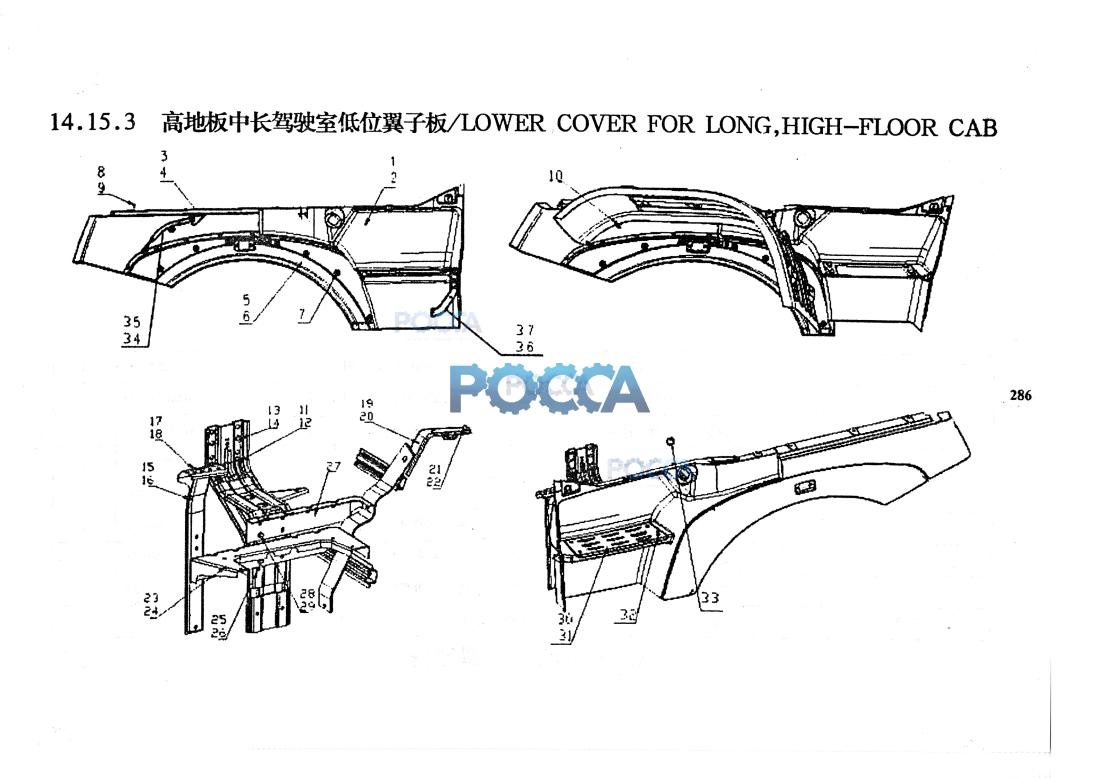

1 |
|
|
AZ1664230007 |
1 |
高地板低位左前翼了-板 |
|
lower,front-cover left for high floor |
|
|
2 |
|
|
AZ1664230006 |
I |
髙地板低位右前翼子板（与左件对称） |
|
lower,front-cover right for high floor |
|
|
3 |
|
|
AZ1664230009 |
1 |
高地板左翼子板后段(长） |
|
long,rear-cover left for high floor |
|
|
4 |
|
|
AZ1664230008 |
1 |
髙地板右翼T板后段（长）（与左件对称） |
|
long,rear-cover right for high floor |
|
|
5 |
|
|
AZ1664230011 |
1 |
左翼子板装饰板 |
|
left-cover panel |
|
|
6 |
|
|
AZ1664230012 |
1 |
右翼子板装饰板（与左件对称） |
|
Iright-cover panel |
|
|
7 |
|
|
AZ1664230057 |
16 |
簧片蟫母 |
|
reed nut |
|
|
8 |
|
|
Q150B0820 |
14 |
六角头螺栓 |
|
hexagon screw |
|
|
9 |
|
|
Q40108 |
14 |
平垫圈 |
|
washer |
|
|
10 |
|
|
Q2204816 |
4 |
十字槽盘头自攻嫘钉和平垫圈组合件 |
|
screw |
|
|
11 |
|
|
AZ1664233025 |
1 |
髙地板翼子板左中支架总成 |
|
middle-breaket left for high-floor |
|
|
12 |
|
|
AZ1664233155 |
1 |
高地板翼了-板右中支架总成 |
|
middle-breaket right for high-floor |
|
|
13 |
|
|
Q150B1030 |
10 |
六角头螺栓 |
|
—jjth— hexagon screw |
|
|
14 |
|
|
Q40110 |
10 |
平垫圈 |
|
washer |
|
|
15 |
|
|
AZ1664233030 |
1 |
高地板翼子板左前支架总成 |
|
front-breaket left for high-floor |
|
|
16 |
|
|
AZ1664233032 |
1 |
高地板翼子板右前支架总成（与左件对称） |
|
front-breaket right for high-floor |
|
|
17 |
|
|
Q150B0820 |
6 |
六角头螺栓 |
|
hexagon screw |
|
|
18 |
|
|
Q40108 |
6 |
平垫圈 |
|
washer |
|
|
19 |
|
|
AZ1664233035 |
1 |
高地板翼子板左后支架总成 |
|
rear-breaket left for high-floor |
|
|
20 |
|
|
AZ1664233036 |
I |
高地板翼子板右后支架总成（与左件对称） |
|
rear-breaket right for high-floor |
|
|
21 |
|
|
Q150B0820 |
4 |
六角头螺栓 |
|
hexagon screw |
|
|
22 |
|
|
Q40108 |
4 |
平垫圈 |
|
washer |
|
|
23 |
|
|
AZ1664230061 |
14 |
高地板低位踏板左托架总成 |
|
lower,U-member left |
|
|
24 |
|
|
AZ1664230062 |
14 |
高地板低位踏板右托架总成（与左件对称） |
|
lower，U-member right |
|
|
25 |
|
|
Q150B0820 |
1 |
六角头螺栓 |
|
hexagon screw |
|
|
26 |
|
|
Q40108 |
5 |
平垫圈 |
|
washer |
|
|
27 |
|
|
AZ1664230140 |
5 |
高地板洗涤器左支架总成 |
|
syringe breaket left |
|
|
28 |
|
|
Q150B0820 |
1 |
六角头螺栓 |
|
hexagon screw |
|
|
29 |
|
|
Q40108 |
I |
平垫圈 |
|
washer |
|
|
30 |
|
|
WG1664230081 |
8 |
高地板低位左防滑板 |
|
Lower plate left for high-floor |
|
|
31 |
|
|
WGJ664230082 |
2 |
商地板低位右防滑板（与左件对称） |
|
Lower plate right for high-floor |
|
|
32 |
|
|
Q2540820 |
1 |
十字槽沉头螺钉 |
|
screw |
|
|
33 |
|
|
WG1664230051 |
1 |
堵盖 |
|
Cover |
|
|
34 |
|
|
AZ1664230133 |
1 |
翼子板后段左支架 |
|
left breaket |
|
|
35 |
|
|
AZ1664230134 |
1 |
翼子板后段右支架（与左件对称） |
|
right breaket |
|
|
36 |
|
|
AZ1664233225 |
|
左固定支架 |
|
left breaket |
|
|
37 |
|
|
AZ1664233226 |
|
右固定支架（与左件对称） |
|
right breaket |
|
