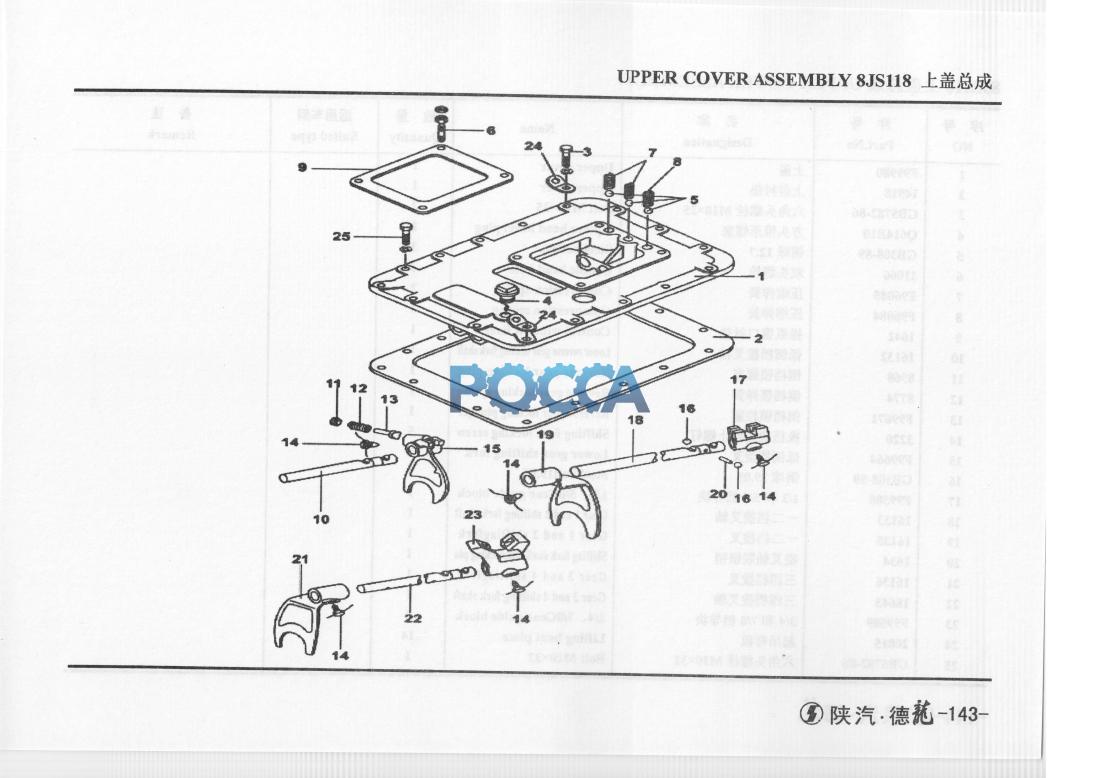

1 |
|
|
F99980 |
1 |
上盖 |
Upper cover |
|
|
|
2 |
|
|
14918 |
1 |
上盖衬垫 |
Upper cover |
|
|
|
3 |
|
|
GB5782-86 |
2 |
六角头螺栓Ml〇x35 |
Bolt Ml〇x35 |
|
|
|
4 |
|
|
Q614B10 |
1 |
方头锥形螺塞 |
Square head bevel plug |
|
|
|
5 |
|
|
GB308-89 |
3 |
钢球12.7 |
Steel balll2.7 |
|
|
|
6 |
|
|
11066 |
4 |
双头螺栓 |
Double head bolt |
|
|
|
7 |
|
|
F96085 |
2 |
压缩弹簧 |
Compression spring |
|
|
|
8 |
|
|
F96084 |
1 |
压缩弹簧 |
Compression spring |
|
|
|
9 |
|
|
1642 |
1 |
操纵窗口衬垫 |
Control window liner |
|
|
|
10 |
|
|
16132 |
1 |
低倒档拨叉轴 |
Lower reverse gear shifting fork shaft |
|
|
|
11 |
|
|
8968 |
1 |
倒档锁螺塞 |
Reverse gear locking plug |
|
|
|
12 |
|
|
8774 |
1 |
倒档锁弹簧 |
Reverse gear locking spring |
|
|
|
13 |
|
|
F99671 |
1 |
倒档锁柱塞 |
Reverse gear locking plunger |
|
|
|
14 |
|
|
3220 |
5 |
换档拨叉锁止螺钉’ |
Shifting fork locking screw |
|
|
|
15 |
|
|
F99664 |
1 |
低倒档拨叉 |
Lower gear shifting fork |
|
|
|
16 |
|
|
GB308-89 |
2 |
钢球19.05 |
Steel balU9.05 |
|
|
|
17 |
|
|
F99588 |
1 |
1/2和5/6档导块 |
1/2 > 5/6Gear guide block |
|
|
|
18 |
|
|
16133 |
1 |
一二档拨叉轴 |
Gear 1 and 2 shifting fork shaft |
|
|
|
19 |
|
|
16135 |
1 |
—二档拨叉 |
Gear 1 and 2 shiftingfork |
|
|
|
20 |
|
|
1634 |
1 |
拨叉轴联锁销 |
Shifting fork shaft interlocking pin |
|
|
|
21 |
|
|
16136 |
1 |
三四档拨叉 |
Gear 3 and 4 shiftingfork |
|
|
|
22 |
|
|
18643 |
1 |
三四档拨叉轴 |
Gear 3 and 4 shifting fork shaft |
|
|
|
23 |
|
|
F99589 |
2 |
3/4和7/8档导块 |
3/4 > 7/8Gear guide block |
|
|
|
24 |
|
|
20815 |
14 |
起吊弯板 |
Lifting bent plate |
|
|
|
25 |
|
|
GB5782-86 |
1 |
六角头螺栓Ml〇x32 |
Bolt Ml〇x32 |
|
|
