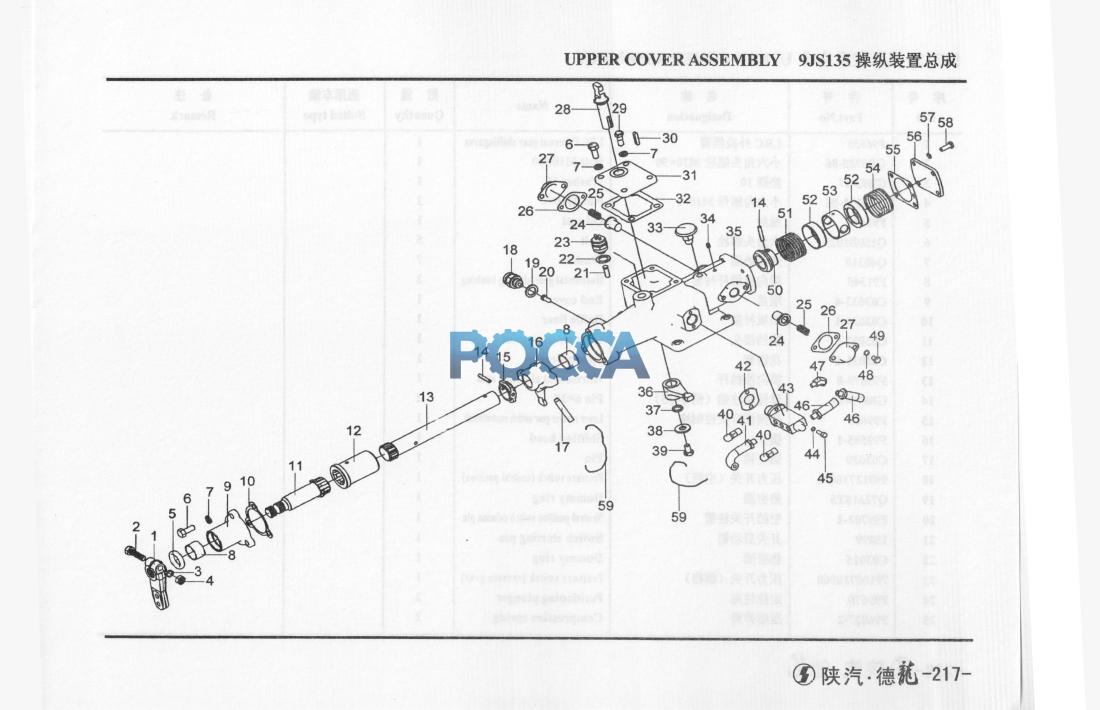

1 |
|
|
F96035 |
1 |
LRC外换档臂 |
LRC External gear shiftingarm |
|
|
|
2 |
|
|
GB5785-86 |
1 |
小六角头螺栓M10X50 |
Bolt Ml〇x50 |
|
|
|
3 |
|
|
GB93-87 |
1 |
垫圈10 |
Washer 10 |
|
|
|
4 |
|
|
GB6171-86 |
1 |
小六角螺母Ml〇xl |
Nut Ml〇xl |
|
|
|
5 |
|
|
F91444 |
1 |
油封 |
Oil seal |
|
|
|
6 |
|
|
Q150BI025 |
5 |
六角头螺栓 |
Bolt |
|
|
|
7 |
|
|
Q403I0 |
7 |
弹簧垫圈 |
Washer |
|
|
|
8 |
|
|
F91345 |
2 |
横向换档杆衬套 |
Horizontal gear-shifting bushing |
|
|
|
9 |
|
|
C03033-4 |
1 |
端盖 |
End cover |
|
|
|
10 |
|
|
C03034-1 |
1 |
挡板衬垫 |
Baffle liner |
|
|
|
11 |
|
|
C03032-5 |
1 |
换档接头 |
Gear shifting joint |
|
|
|
12 |
|
|
C03031-1 |
1 |
花键套 |
Spline sleeve |
|
|
|
13 |
|
|
F99679-8 |
1 |
横向换档杆 |
Horizontal shifting rod |
|
|
|
14 |
|
|
GB879-76 |
2 |
弹性圆柱销（销6x35) |
Pin 6x35 |
|
|
|
15 |
|
|
F99681 |
1 |
低倒档开关控制块 |
Lower reverse gear switch controlblock |
|
|
|
16 |
|
|
F99585-1 |
1 |
拨头 |
Shifting head |
|
|
|
17 |
|
|
C03030 |
1 |
圆柱销 |
Pin |
|
|
|
18 |
|
|
99012710041 |
1 |
压力开关（空档） |
Pressure switch (neutral position) |
|
|
|
19 |
|
|
Q72318T5 |
1 |
垫密圈 |
Dummy ring |
|
|
|
20 |
|
|
F99702-1 |
1 |
空档开关柱销 |
Neutral position switch column pin |
|
|
|
21 |
|
|
15899 |
1 |
开关启动销 |
Switch starting pin |
|
|
|
22 |
|
|
C03015 |
1 |
垫密圈 |
Dummy ring |
|
|
|
23 |
|
|
79100710068 |
1 |
压力开关（倒档） |
Pressure switch (reverse gear) |
|
|
|
24 |
|
|
F99670 |
2 |
定位柱塞 |
Positioning plunger |
|
|
|
25 |
|
|
F96037-2 |
2 |
压缩弹簧 |
Compression spring |
|
|
|
26 |
|
|
F96140 |
2 |
衬垫 |
Liner |
|
|
|
27 |
|
|
F96141 |
2 |
弹簧压盖 |
Spring gland |
|
|
|
28 |
|
|
C03038-I |
1 |
选档接头 |
Gear choosing joint |
|
|
|
29 |
|
|
C03040-1 |
2 |
定位螺钉 |
Positioning screw |
|
|
|
30 |
|
|
Q5510628 |
1 |
平键 |
Flat key |
|
|
|
31 |
|
|
C03036-1 |
1 |
窗口盖 |
Window lid |
|
|
|
32 |
|
|
C03037-1 |
1 |
窗口衬垫 |
Window liner |
|
|
|
33 |
|
|
15276 |
1 |
通气塞 |
Ventilation plug |
|
|
|
34 |
|
|
C03004 |
1 |
止动螺钉 |
Stop screw |
|
|
|
35 |
|
|
F96194-6 |
1 |
双H操纵装置壳体 |
Dual H control devicehull |
|
|
|
36 |
|
|
C03035-1 |
1 |
选档拨头 |
Gear-choosing shifting head |
|
|
|
37 |
|
|
HG4-333-66 |
1 |
O型密封圈（20x2.4) |
O-ring |
|
|
|
38 |
|
|
C03039-1 |
1 |
垫圈 |
Washer |
|
|
|
39 |
|
|
Q170B1016 |
1 |
六角头头部带孔螺栓 |
Hex head bolt with hole inhead |
|
|
|
40 |
|
|
7935 |
2 |
通气塞 |
Ventilation plug |
|
|
|
41 |
|
|
55521 |
1 |
气管总成 |
Air pipe assembly |
|
|
|
42 |
|
|
F91353 |
1 |
双H气阀衬垫 |
Dual H air valve liner |
|
|
|
43 |
|
|
F99660 |
1 |
双H气阀 |
Dual H air valve |
|
|
|
44 |
|
|
GB93-76 |
2 |
弹簧垫圈6 |
Washer 6 |
|
|
|
45 |
|
|
GB70-76 |
2 |
内六角螺钉（M6xl8) |
Inner hex screw M6><1 |
|
|
|
46 |
|
|
55506 |
2 |
气管总成 |
Air pipe assembly |
|
|
|
47 |
|
|
12880 |
1 |
45弯管接头 |
45° syphon joint |
|
|
|
48 |
|
|
GB859-76f |
4 |
弹簧垫圈8 |
Washer 8 |
|
|
|
49 |
|
|
GB21-76 |
4 |
小六角头螺栓M842 |
Bolt M8xl2 |
|
|
|
50 |
|
|
F99675 |
1 |
定位环 |
Positioning ring |
|
|
|
51 |
|
|
F96036-1 |
1 |
压缩弹簧 |
Compression spring |
|
|
|
52 |
|
|
F99673 |
2 |
弹簧座 |
Spring seat |
|
|
|
53 |
|
|
F99674 |
1 |
弹簧隔套’ |
Spring spacer tube |
|
|
|
54 |
|
|
F99983-1 |
1 |
压缩弹簧 |
Compression spring |
|
|
|
55 |
|
|
F99672 |
1 |
端垫， |
End liner |
|
|
|
56 |
|
|
F99666 |
1 |
侧板 |
Side board |
|
|
|
57 |
|
|
GB93-76 |
4 |
弹簧垫圈8 |
Washer 8 |
|
|
|
58 |
|
|
GB21-76 |
4 |
小六角头螺栓（M8U2) |
Bolt M8x22 |
|
|
|
59 |
|
|
1819 |
按需 |
铁丝0>1.2 |
Iron wire |
|
|
