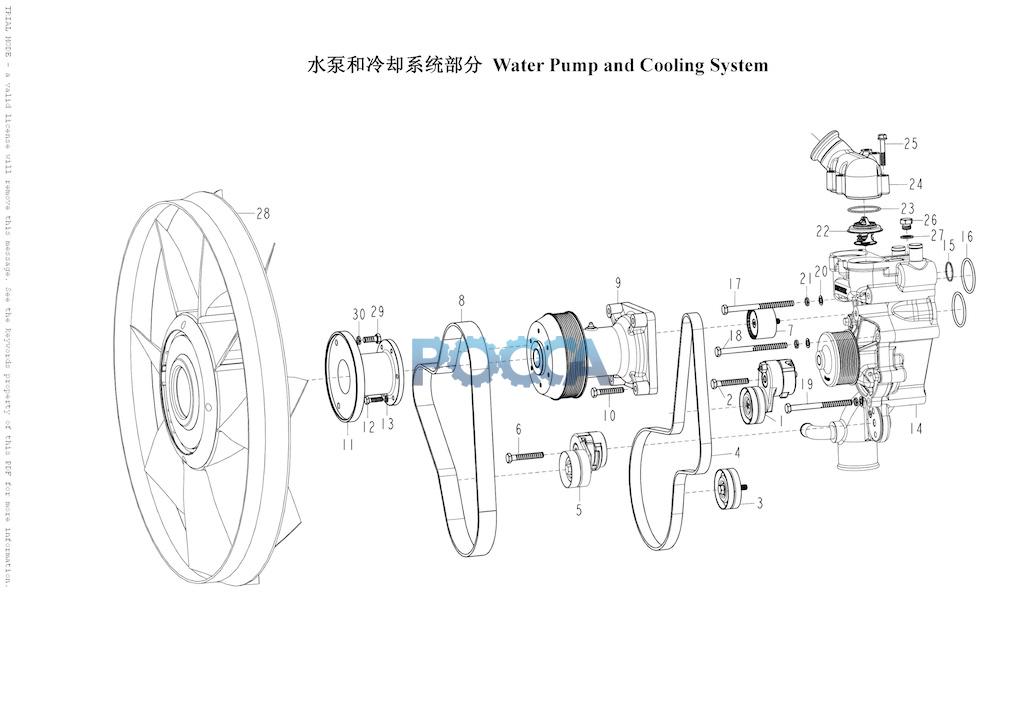

1 |
|
|
VG1246060001 |
1 |
Automatic tensioning roller assembly |
|
|
|
|
2 |
|
|
Q150B1065TF2 |
1 |
Hex head bolt |
|
|
|
|
3 |
|
|
VG1246060004 |
1 |
Idle pulley |
|
|
|
|
4 |
|
|
VG1246060008 |
1 |
Poly V belt |
|
|
|
|
5 |
|
|
VG 1246060002 |
1 |
Automatic tensioning roller assembly |
|
|
|
|
6 |
|
|
Q150B1065TF2 |
1 |
Hex head bolt |
|
|
|
|
7 |
|
|
VG 1246060047 |
1 |
Idle pulley |
|
|
|
|
8 |
|
|
VG1246060082 |
1 |
Poly V belt |
|
|
|
|
9 |
|
|
VG1246060070 |
1 |
Fan support assembly |
|
|
|
|
10 |
|
|
Q150B1055 |
4 |
Hex head bolt |
|
|
|
|
11 |
|
|
VG 1246060045 |
1 |
Flange |
|
A7 |
|
|
|
|
|
VG 1246060046A |
1 |
Flange |
|
HOWO |
|
|
12 |
|
|
Q150B0830 |
6 |
Hex head bolt |
|
|
|
|
13 |
|
|
Q40308 |
6 |
Spring washer |
|
|
|
|
14 |
|
|
VG 1246060042 |
1 |
Water pump assembly |
|
|
|
|
15 |
|
|
VG 1246060027 |
1 |
O-ring |
|
|
|
|
16 |
|
|
VG 1246060028 |
2 |
O-ring |
|
|
|
|
17 |
|
|
Q150B10150 |
3 |
Hex head bolt |
|
|
|
|
18 |
|
|
Q150B10135 |
1 |
Hex head bolt |
|
|
|
|
19 |
|
|
Q150B10125 |
1 |
Hex head bolt |
|
|
|
|
20 |
|
|
Q40110 |
5 |
Washer |
|
|
|
|
21 |
|
|
Q40310 |
5 |
Spring washer |
|
|
|
|
22 |
|
|
VG1246060024 |
2 |
Thermostat |
|
80 C |
|
|
|
|
|
VG1246060029 |
2 |
Thermostat |
|
71"Ciffi^ |
|
|
23 |
|
|
VG 1246060025 |
2 |
O-ring |
|
|
|
|
24 |
|
|
VG 1246060023 |
1 |
Thermostat housing |
|
|
|
|
25 |
|
|
Q1840850 |
4 |
Hex head bolt |
|
|
|
|
26 |
|
|
Q617B14 |
1 |
Screw plug |
|
|
|
|
27 |
|
|
VG9003080005 |
1 |
Sealing washer |
|
|
|
|
28 |
|
|
VG1234060034 |
1 |
Jet ring fan |
|
D12.34-30 |
|
|
|
|
|
VG1246060030 |
1 |
Jet ring fan & viscous drive assembly |
|
D12.38-30 D12.42-30 D12.34-30 |
|
|
|
|
|
VG1246060051 |
1 |
Jet ring fan & viscous drive assembly |
|
D12.42-30 D12.38-30 D12.42-30 D12.46-30 |
|
|
29 |
|
|
Q150B1025 |
3 |
Hex head bolt |
|
|
|
|
30 |
|
|
Q40310 |
3 |
Spring washer |
|
|
|
