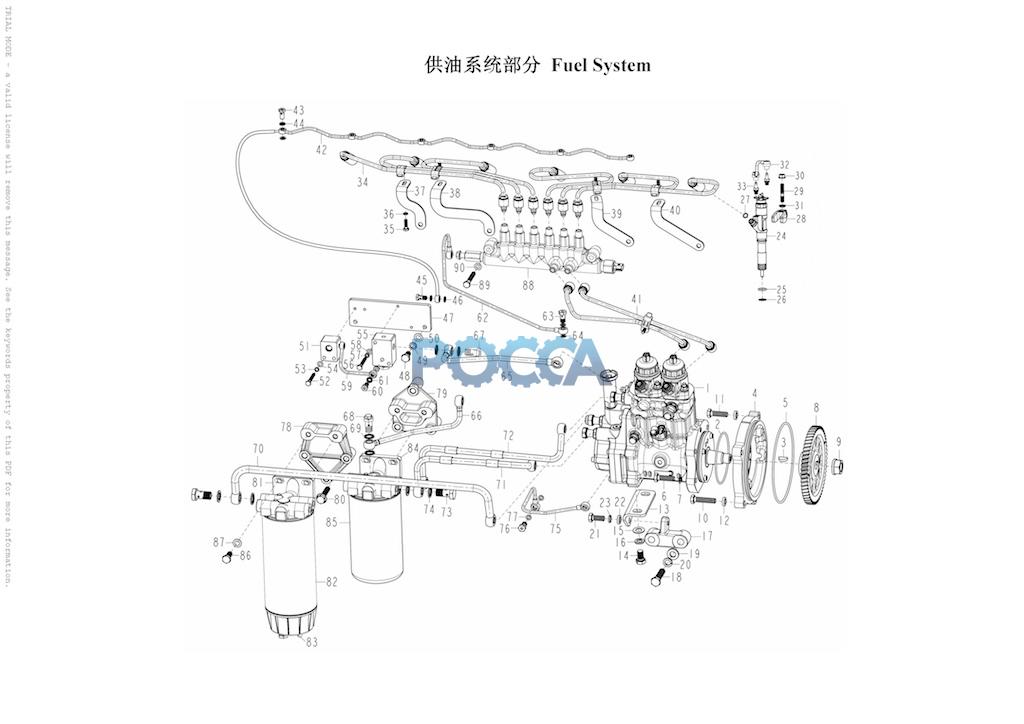

1 |
|
|
VG1246080050 |
1 |
Fuel injection pump |
|
|
|
|
2 |
|
|
VG1246080028 |
1 |
O-ring |
|
|
|
|
3 |
|
|
R61540080312 |
1 |
Woodruff key |
|
|
|
|
4 |
|
|
VG1246080056 |
1 |
Flange |
|
|
|
|
5 |
|
|
VG1246080027 |
1 |
O-ring |
|
|
|
|
6 |
|
|
Q150B1035TF2 |
4 |
Flex head bolt |
|
|
|
|
7 |
|
|
Q40110 |
4 |
Washer |
|
|
|
|
8 |
|
|
VG1246080029 |
1 |
Fuel injection pump gear |
|
|
|
|
9 |
|
|
VG1246130010 |
1 |
Flexagon nut |
|
|
|
|
10 |
|
|
Q150B1045TF2 |
2 |
Flex head bolt |
|
|
|
|
11 |
|
|
Q150B1035TF2 |
2 |
Flex head bolt |
|
|
|
|
12 |
|
|
VG1246080042 |
4 |
Washer |
|
|
|
|
13 |
|
|
VG1246080054 |
1 |
Bracket |
|
|
|
|
14 |
|
|
Q150B1220 |
2 |
Flex head bolt |
|
|
|
|
15 |
|
|
Q40112 |
2 |
Washer |
|
|
|
|
16 |
|
|
Q40312 |
2 |
Spring washer |
|
|
|
|
17 |
|
|
VG1246080055 |
1 |
Bracket |
|
|
|
|
18 |
|
|
Q150B1250 |
2 |
Flex head bolt |
|
|
|
|
19 |
|
|
VG1246080044 |
2 |
Washer |
|
|
|
|
20 |
|
|
Q40312 |
2 |
Spring washer |
|
|
|
|
21 |
|
|
Q150B1025 |
1 |
Hex head bolt |
|
|
|
|
22 |
|
|
VG1246080042 |
1 |
Washer |
|
|
|
|
23 |
|
|
Q40310 |
1 |
Spring washer |
|
|
|
|
24 |
|
|
VG1246080051 |
6 |
Fuel injector |
|
|
|
|
25 |
|
|
VG1540080018A |
6 |
O-ring |
|
|
|
|
26 |
|
|
VG1540080019B |
6 |
Washer |
|
|
|
|
27 |
|
|
VG1540080095 |
6 |
O-ring |
|
|
|
|
28 |
|
|
VG1246080039 |
6 |
Fuel injector clamp |
|
|
|
|
29 |
|
|
VG1099040030 |
6 |
Hex head bolt |
|
|
|
|
30 |
|
|
VG1099040010 |
6 |
Nut |
|
|
|
|
31 |
|
|
VG1540080024 |
6 |
Spherical washer |
|
|
|
|
32 |
|
|
VG1099089065 |
6 |
Fuel return pipe |
|
|
|
|
33 |
|
|
VG1099089064 |
12 |
Tie-in |
|
|
|
|
34 |
|
|
VG1246080001 |
1 |
Injection pipe assembly |
|
|
|
|
35 |
|
|
Q150B0620 |
4 |
Hex head bolt |
|
|
|
|
36 |
|
|
Q41806 |
4 |
Spring washer |
|
|
|
|
37 |
|
|
VG1246080066 |
1 |
Bracket |
|
|
|
|
38 |
|
|
VG1246080067 |
1 |
Bracket |
|
|
|
|
39 |
|
|
VG1246080068 |
1 |
Bracket |
|
|
|
|
40 |
|
|
VG1246080069 |
1 |
Bracket |
|
|
|
|
41 |
|
|
VG1246080070 |
1 |
Fuel injection pipe |
|
|
|
|
42 |
|
|
VG1246080008 |
1 |
Fuel return pipe assembly |
|
|
|
|
43 |
|
|
VG1246080077 |
6 |
FIollow bolt |
|
|
|
|
44 |
|
|
VG1540080200 |
12 |
Sealing washer |
|
|
|
|
45 |
|
|
190003962603 |
1 |
FIollow bolt |
|
|
|
|
46 |
|
|
VG9003080002 |
2 |
Sealing washer |
|
|
|
|
47 |
|
|
VG1540080070 |
1 |
Mounting plate |
|
|
|
|
48 |
|
|
Q150B1020 |
2 |
Flex head bolt |
|
|
|
|
49 |
|
|
Q40310 |
2 |
Spring washer |
|
|
|
|
50 |
|
|
Q40110 |
2 |
Washer |
|
|
|
|
51 |
|
|
VG1540080067 |
1 |
Fuel temp sensor bracket |
|
|
|
|
52 |
|
|
Q150B0645 |
2 |
Flex head bolt |
|
|
|
|
53 |
|
|
Q40306 |
2 |
Spring washer |
|
|
|
|
54 |
|
|
Q40106 |
2 |
Washer |
|
|
|
|
55 |
|
|
VG1540080071 |
1 |
Oil return bracket |
|
|
|
|
56 |
|
|
Q150B0645 |
2 |
Hex head bolt |
|
|
|
|
57 |
|
|
Q40306 |
2 |
Spring washer |
|
|
|
|
58 |
|
|
Q40106 |
2 |
Washer |
|
|
|
|
59 |
|
|
VG1246080079 |
1 |
Fuel return pipe |
|
|
|
|
60 |
|
|
190003962603 |
2 |
Hollow bolt |
|
|
|
|
61 |
|
|
VG9003080002 |
4 |
Sealing washer |
|
|
|
|
62 |
|
|
VG1246080015 |
1 |
Common rail relief pipe |
|
|
|
|
63 |
|
|
190003962607 |
1 |
Hollow bolt |
|
|
|
|
64 |
|
|
VG9003080003 |
1 |
Sealing washer |
|
|
|
|
65 |
|
|
VG1246080017 |
1 |
Fuel injection pump relief pipe |
|
|
|
|
66 |
|
|
VG1246080013 |
1 |
Fuel filter relief pipe |
|
|
|
|
67 |
|
|
190003962621 |
3 |
Hollow bolt |
|
|
|
|
68 |
|
|
VG1540080022 |
1 |
Overflow valve |
|
|
|
|
69 |
|
|
VG9003080005 |
8 |
Sealing washer |
|
|
|
|
70 |
|
|
VG1246080019 |
1 |
Fuel pipe |
|
|
|
|
71 |
|
|
VG1246080012 |
1 |
Fuel pipe |
|
|
|
|
72 |
|
|
VG1246080011 |
1 |
Fuel pipe |
|
|
|
|
73 |
|
|
VG1246080014 |
4 |
Hollow bolt |
|
|
|
|
74 |
|
|
VG9003080006 |
8 |
Sealing washer |
|
|
|
|
75 |
|
|
VG1246080016A |
1 |
Oil pipe |
|
|
|
|
76 |
|
|
190003962607 |
1 |
Hollow bolt |
|
A4 DIN7623 6S |
|
|
77 |
|
|
VG9003080003 |
2 |
Sealing washer |
|
|
|
|
78 |
|
|
VG1246080020 |
1 |
Primary fuel filter bracket |
|
|
|
|
79 |
|
|
VG1246080023 |
1 |
Final fuel filter bracket |
|
|
|
|
80 |
|
|
Q1841050 |
6 |
Hex head bolt |
|
|
|
|
- |
|
|
VG1246080075 |
1 |
Primary fuel filter assembly |
|
|
|
|
81 |
|
|
VG1246080088 |
1 |
Primary fuel filter body |
|
|
|
|
- |
|
|
VG1096080037 |
1 |
Oil filter and drain valve with sensor |
|
|
|
|
82 |
|
|
VG1540080211 |
1 |
Oil filter |
|
|
|
|
83 |
|
|
VG1096080034 |
1 |
Drain valve with water sensor |
|
|
|
|
- |
|
|
VG1246080086 |
1 |
Final fuel filter assembly |
|
|
|
|
84 |
|
|
VG1246080089 |
1 |
Final fuel filter body |
|
|
|
|
85 |
|
|
VG1540080110 |
1 |
Final fuel filter |
|
|
|
|
86 |
|
|
Q150B1025 |
4 |
Hex head bolt |
|
|
|
|
87 |
|
|
Q41810 |
4 |
Spring washer |
|
|
|
|
88 |
|
|
R61540080016 |
1 |
Rail |
|
|
|
|
89 |
|
|
Q150B0855 |
2 |
Hex head bolt |
|
|
|
|
90 |
|
|
Q41808 |
2 |
Spring washer |
|
|
|
