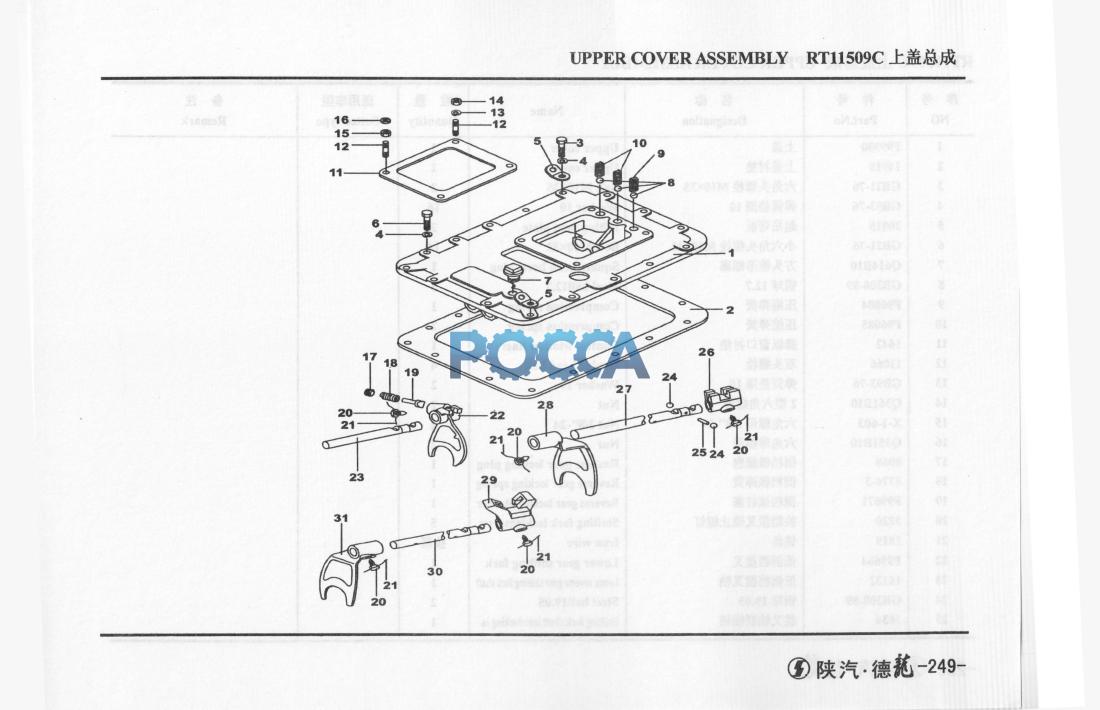

1 |
|
|
F99980 |
1 |
上盖 |
Upper cover |
|
|
|
2 |
|
|
14918 |
1 |
上盖衬垫 |
Upper cover |
|
|
|
3 |
|
|
GB21-76 |
2 |
六角头螺栓Ml〇x35 |
Bolt Ml〇x35 |
|
|
|
4 |
|
|
GB93-76 |
16 |
弹簧垫圈10 |
Washer 10 |
|
|
|
5 |
|
|
20815 |
2 |
起吊弯板 |
Lifting bent plate |
|
|
|
6 |
|
|
GB21-76 |
14 |
小六角头螺栓Ml〇x32 |
Bolt Ml〇x32 |
|
|
|
7 |
|
|
Q614B10 |
1 |
方头锥形螺塞 |
Square head bevel plug |
|
|
|
8 |
|
|
GB308-89 |
3 |
钢球12.7 |
Steel ba!112.7 |
|
|
|
9 |
|
|
F96084 |
1 |
压缩弹簧 |
Compression spring |
|
|
|
10 |
|
|
F96085 |
2 |
压缩弹簧 |
Compression spring |
|
|
|
11 |
|
|
1642 |
1 |
操纵窗口衬垫 |
Control window liner |
|
|
|
12 |
|
|
11066 |
4 |
双头螺栓 |
Double head bolt |
|
|
|
13 |
|
|
GB93-76 |
2 |
弹簧垫圈10 |
Washer 10 |
|
|
|
14 |
|
|
Q361B10 |
2 |
2型六角螺母 |
Nut |
|
|
|
15 |
|
|
X-l-603 |
2 |
六角螺母3/8-24 |
Nut 3/8，，-24 |
|
|
|
16 |
|
|
Q351B10 |
2 |
六角薄螺母 |
Nut |
|
|
|
17 |
|
|
8968 |
1 |
倒档锁螺塞 |
Reverse gear locking plug |
|
|
|
18 |
|
|
8774-3 |
1 |
倒档锁弹簧 |
Reverse gear locking spring |
|
|
|
19 |
|
|
F99671 |
1 |
倒档锁柱塞 |
Reverse gear locking plunger |
|
|
|
20 |
|
|
3220 |
5 |
换档拨叉锁止螺钉 |
Shifting fork lockingscrew |
|
|
|
21 |
|
|
1819 |
按需 |
铁丝 |
Iron wire |
|
|
|
22 |
|
|
F99664 |
1 |
低倒档拨叉 |
Lower gear shifting fork |
|
|
|
23 |
|
|
16132 |
1 |
低倒档拨叉轴 |
Lower reverse gear shifting fork shaft |
|
|
|
24 |
|
|
GB308-89 |
2 |
钢球19.05 |
Steel ba!119.05 |
|
|
|
25 |
|
|
1634 |
1 |
拨叉轴联锁销 |
Shifting fork shaft interlocking in |
|
|
|
26 |
|
|
F99588 |
1 |
|
1/2 5/6 gear guide block |
|
|
|
27 |
|
|
16133 |
1 |
|
gear 1 and 2 shifting fork shaft |
|
|
|
28 |
|
|
16135 |
1 |
|
gear 1 and 2 shifting fork |
|
|
|
29 |
|
|
F99589 |
1 |
|
3/4 7/8 gear guide block |
|
|
|
30 |
|
|
18643 |
1 |
|
gear 3 and 4 shifting fork |
|
|
|
31 |
|
|
16136 |
1 |
|
gear 3 and 4 shifitng fork shaft |
|
|
